Description

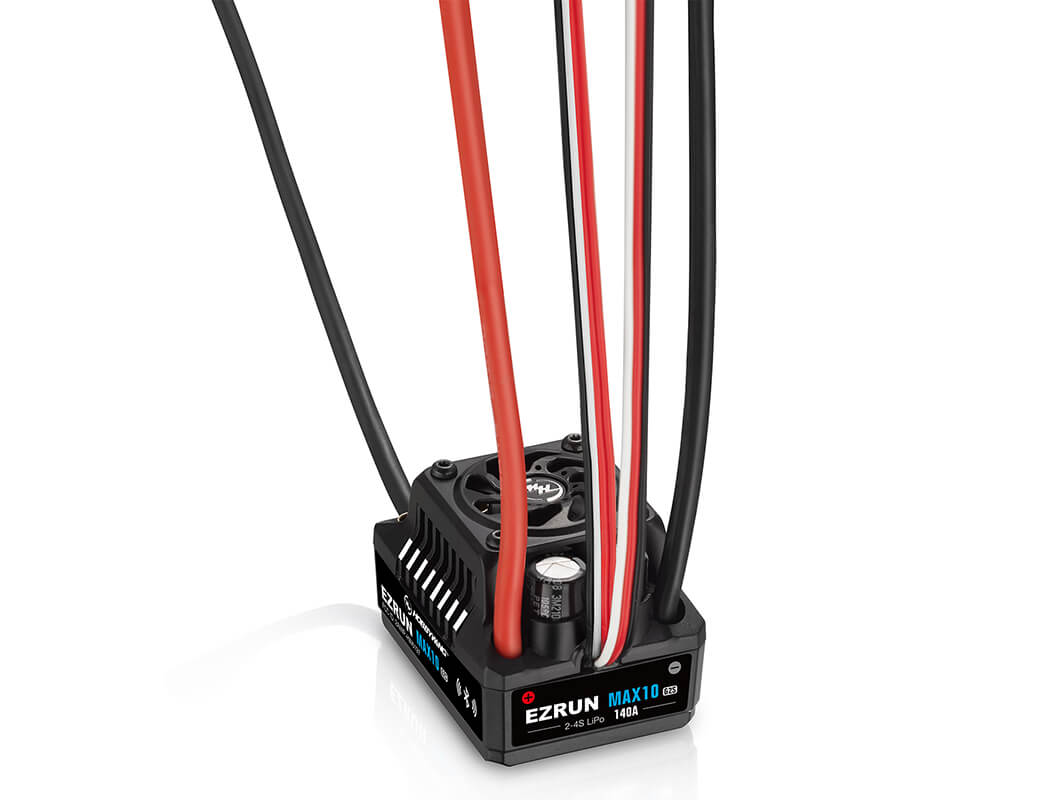

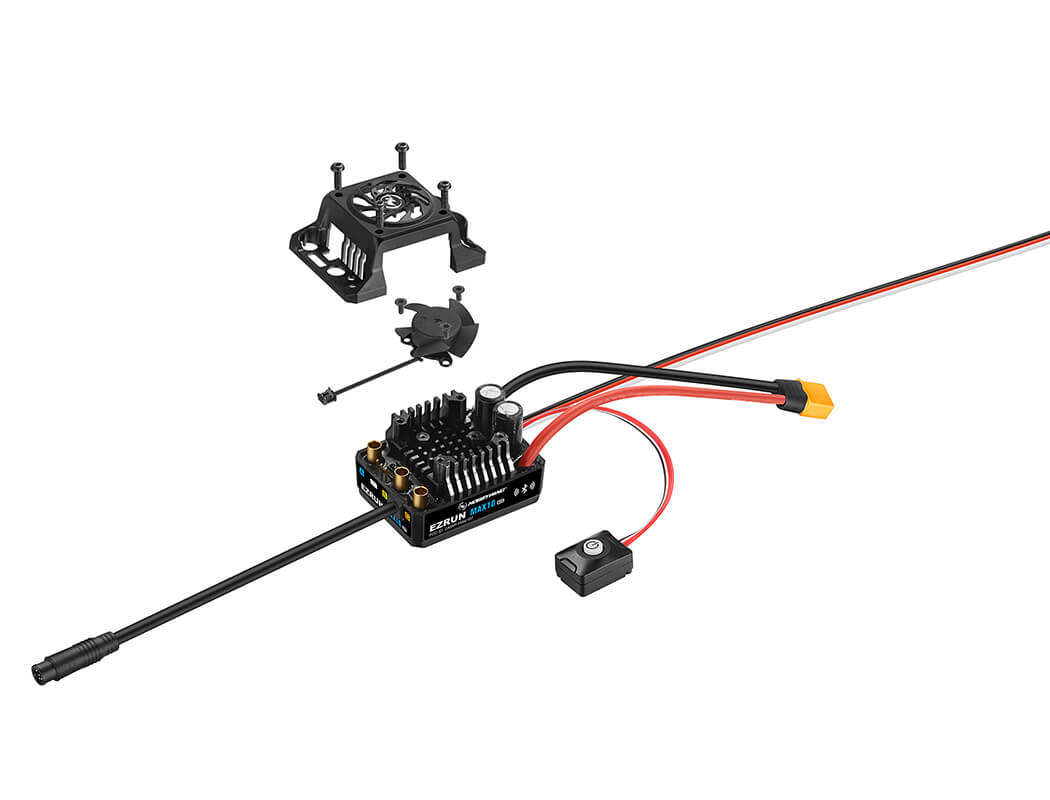

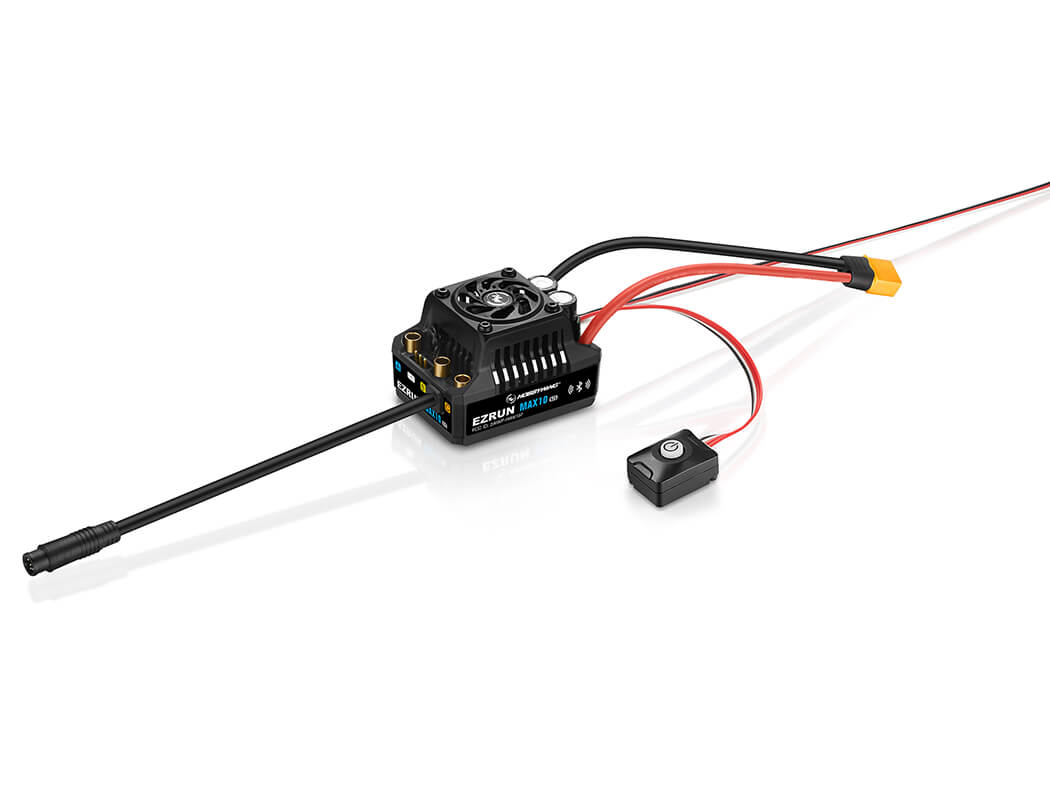

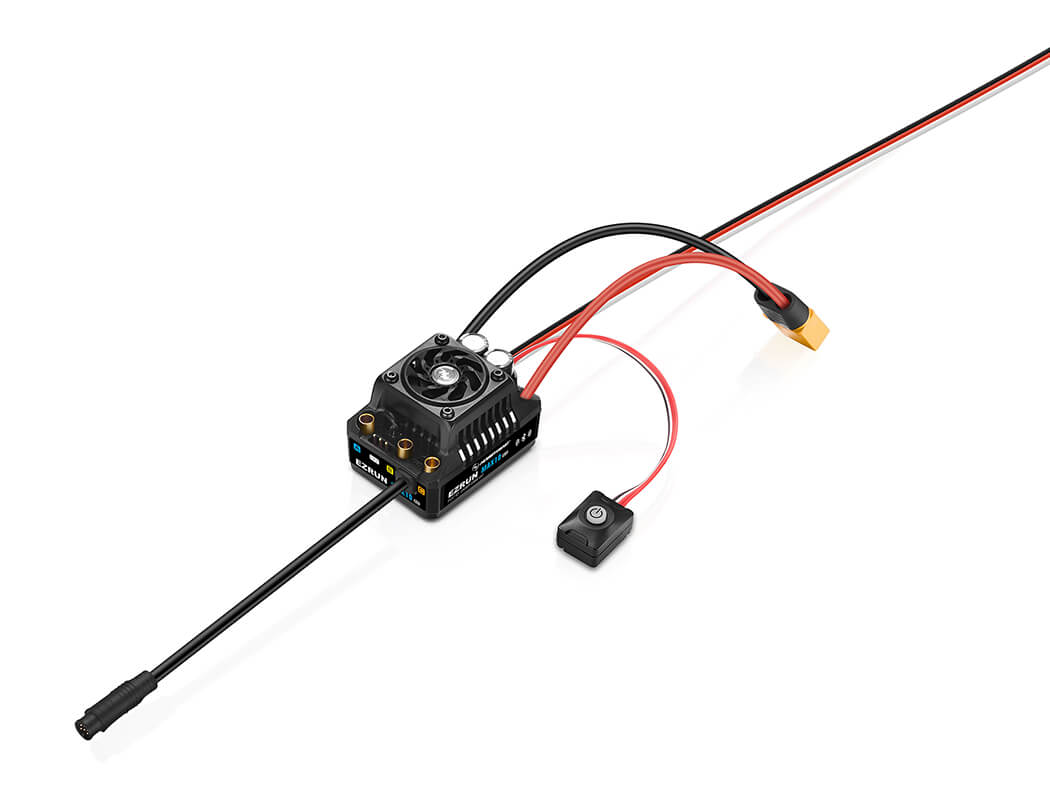

HOBBYWING EZRUN MAX10 G2S 140A SPEED CONTROLLER

SPECIFICATIONS

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Cont./Peak Current: 140A/880A
Input Voltage: 2-4S LiPo
BEC Output: 6V/7.4V/8.4V,5A
Input Wires: Red-12AWG-150mm*1 Black-12AWG-150mm*1
Output Wires: /
Input Connectors: XT60
Output Connectors: 4.0mm Gold (female)
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Separate Program Port: Separate
Data Recording Extreme value: Supported
Real-time Data: Supported
Built-in Historical Data (Graph): Supported
Firmware Upgrade: Supported
Size: 53×39.5×37.2mm
Weight: 125g(w/Wires)
Vehicles: 1/10 Short Course Truck,Truck and Monster Truck
KV Rating/T Count:With 2S Lipo: KV≤6000 3652 size motor, With 3S Lipo: KV≤4000 3665 size motor, With 4S Lipo: KV≤2600 4268 size motor
