Description

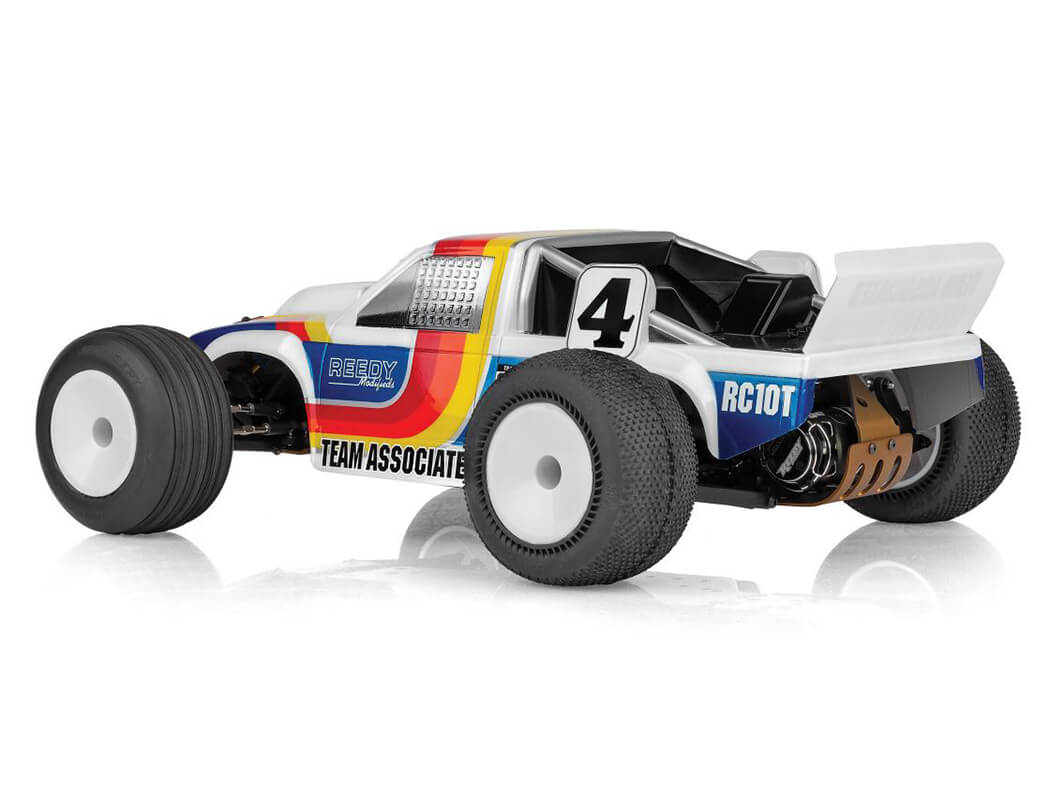

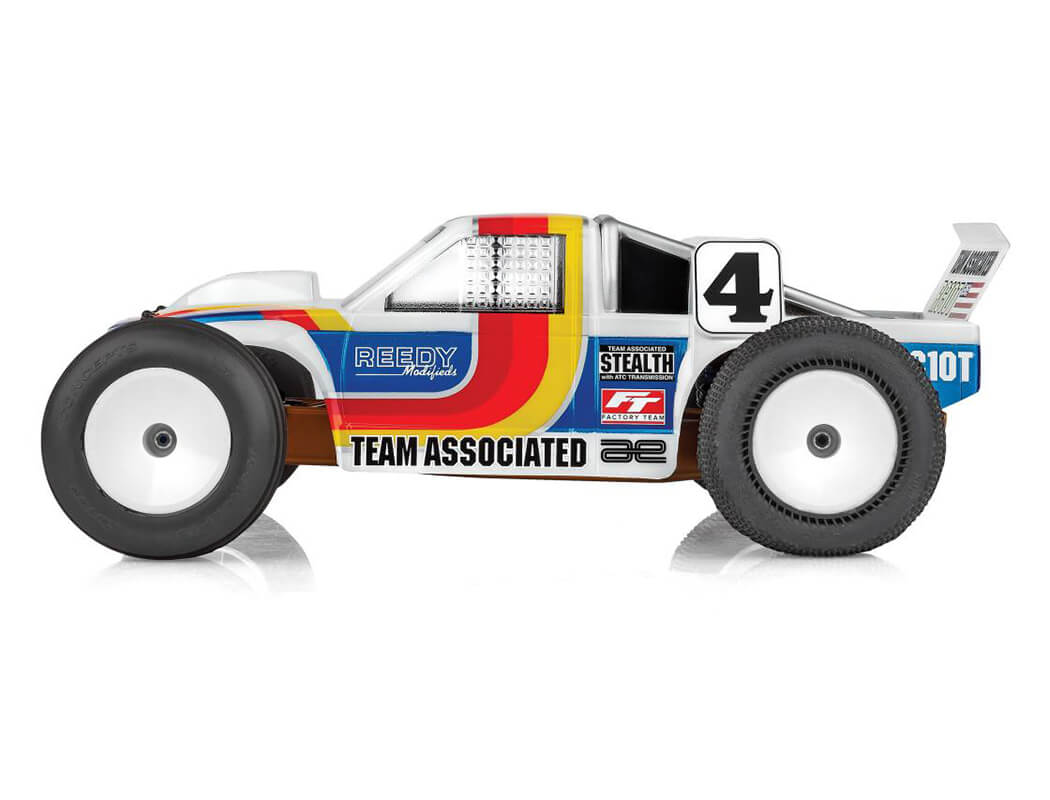

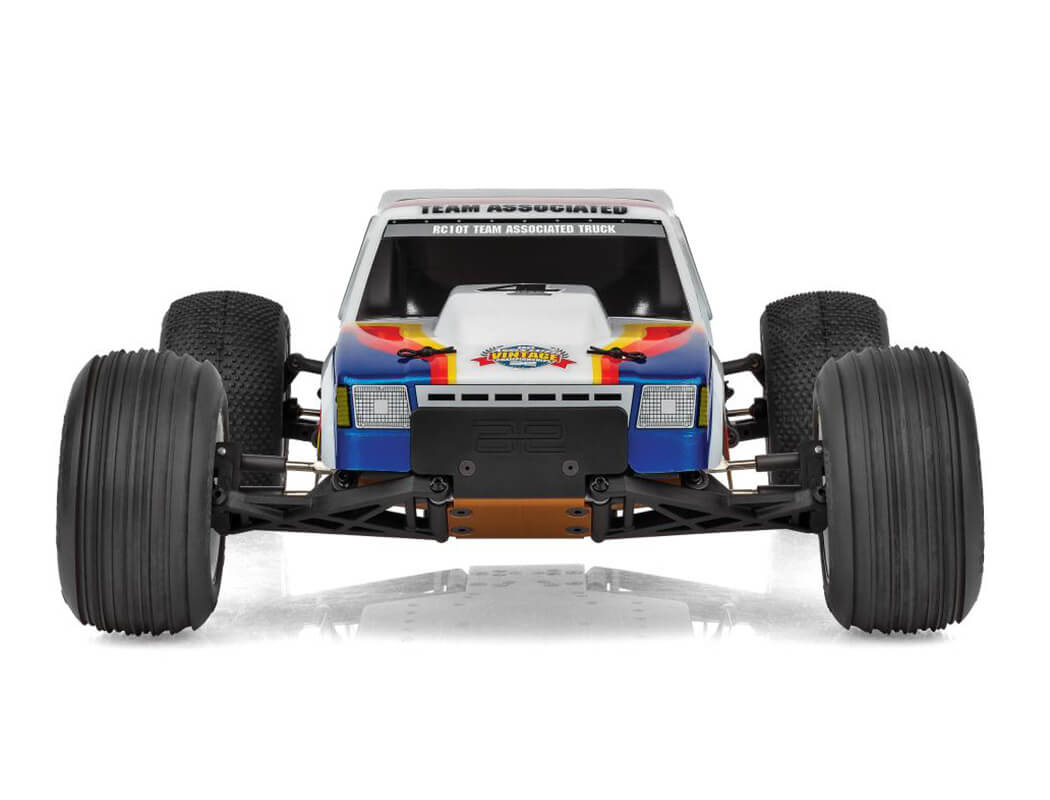

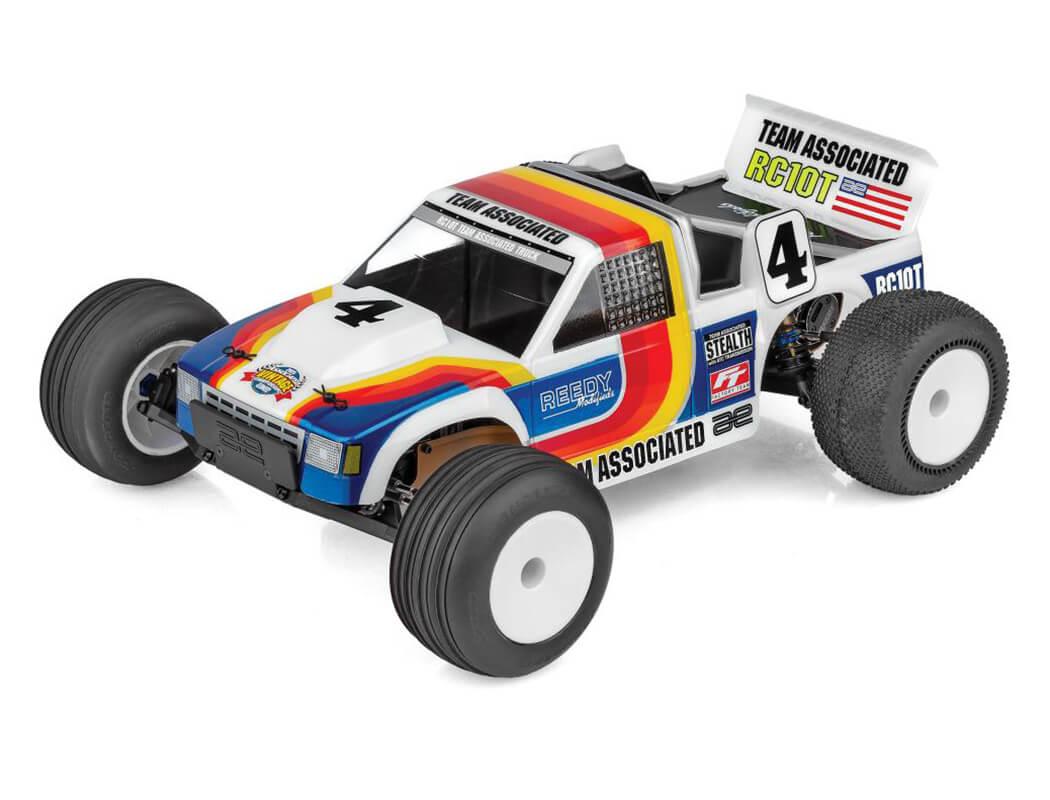

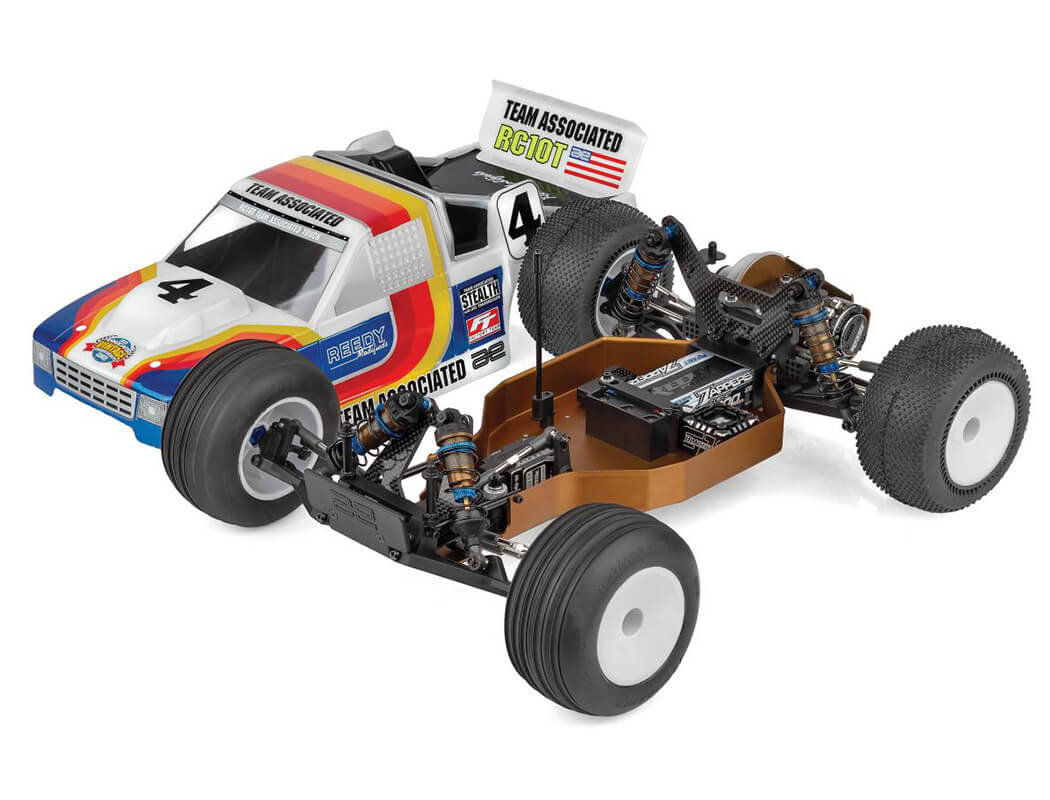

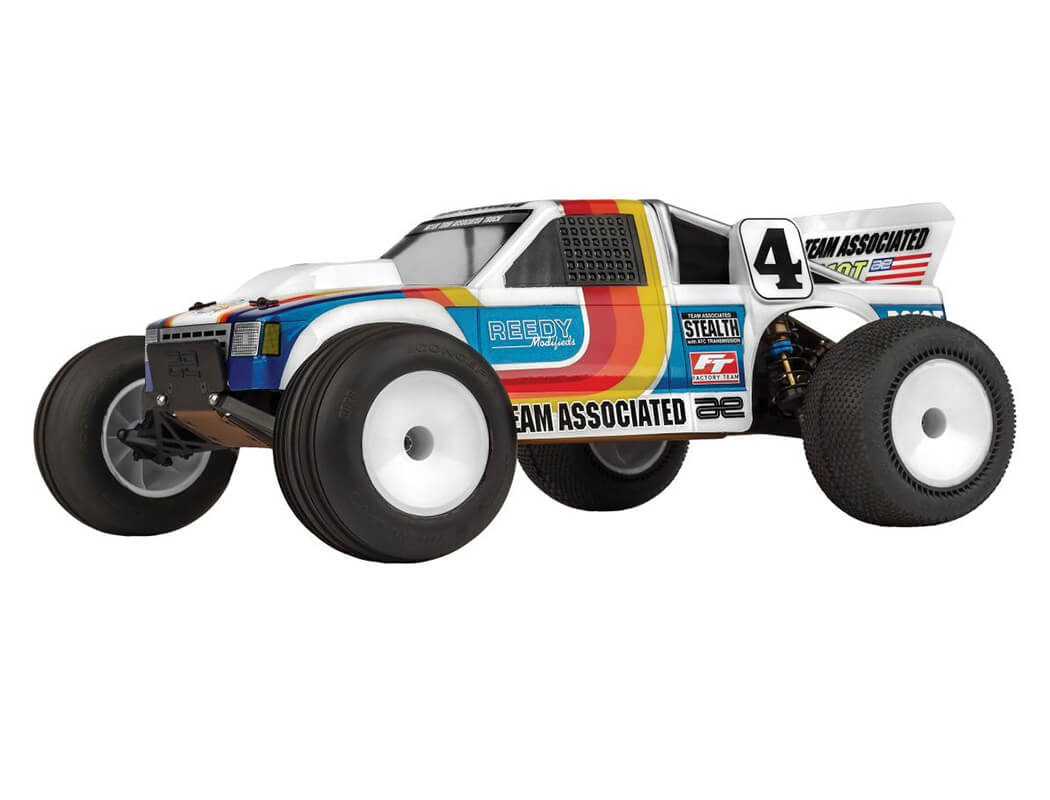

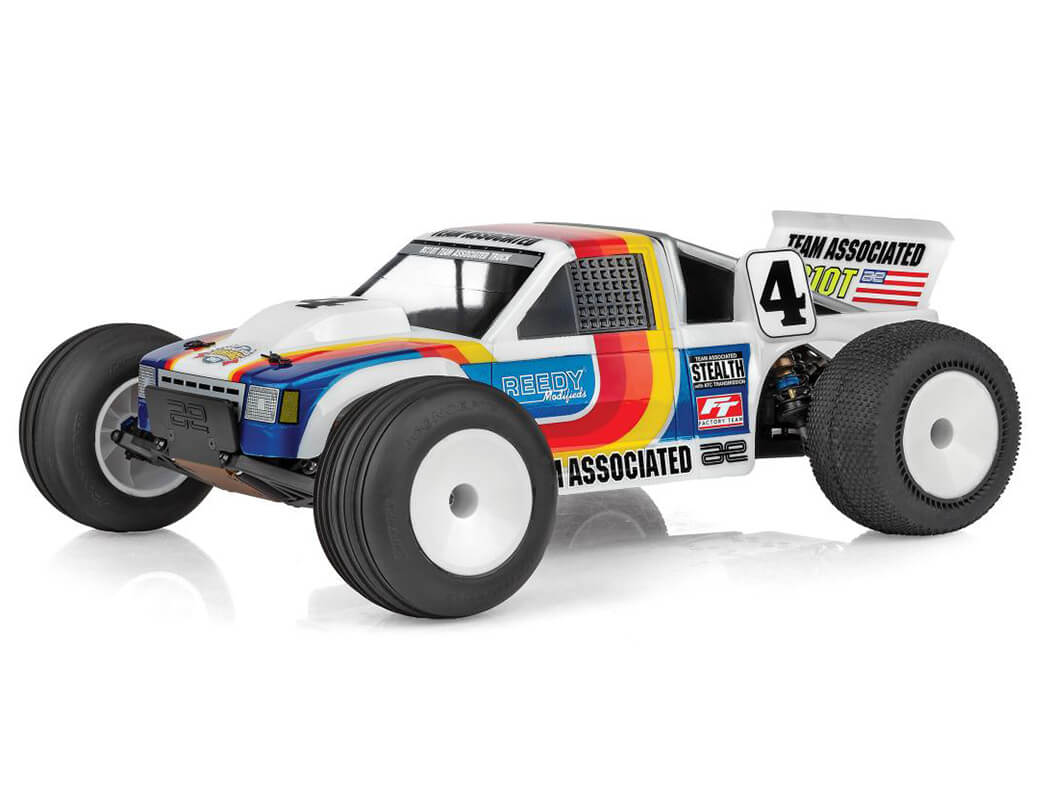

TEAM ASSOCIATED RC10T FACTORY TEAM TRUCK KIT

The Team Associated RC10T Factory Team is Engineered For Victory!

With over 40 years of racing heritage and countless World Championships, the RC10 platform stands out as one of the best performing 10th scale chassis of all time.

Today’s R/C tracks demand a lot from a vintage platform and the AREA 51 Factory Team has been hard at work creating the ultimate RC10T for today’s tracks. The features in this kit are exactly how our Factory Team drivers setup their RC10T’s for modern racing. With big bore shocks, captured hinge pins, 12mm wheel hex’s, exclusive chassis color, and more, this is an RC10T like never before.

FEATURES

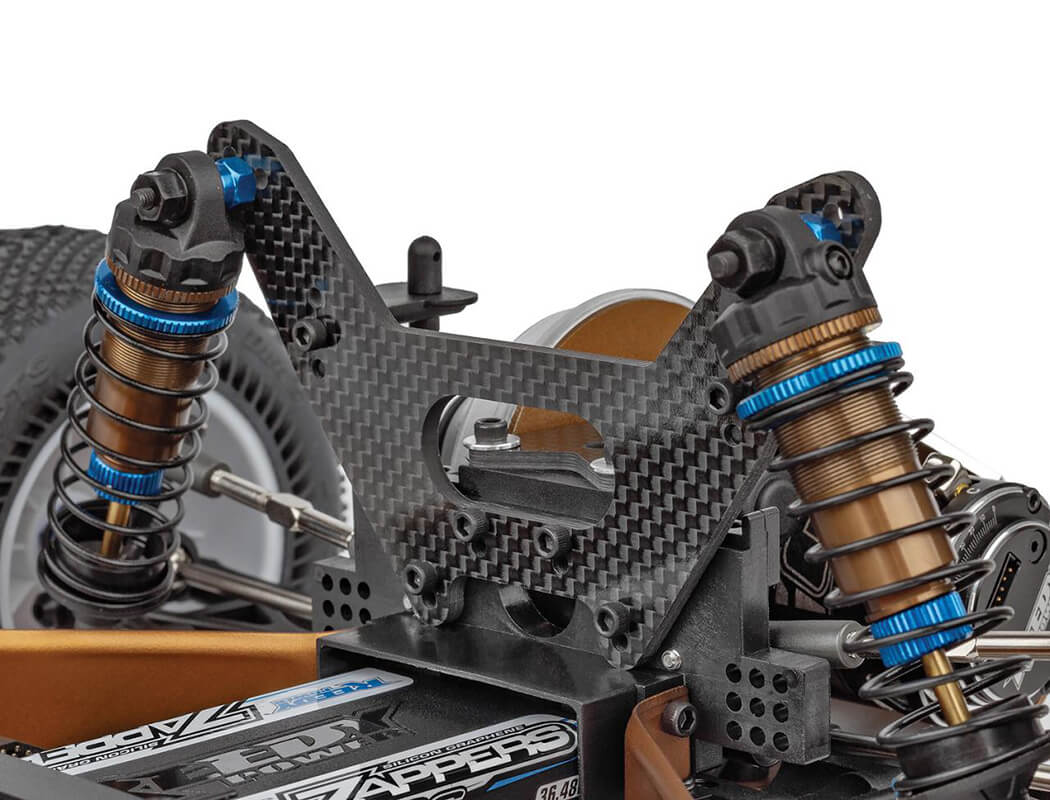

• New Factory Team front and rear carbon fiber front shock towers (big bore compatible).

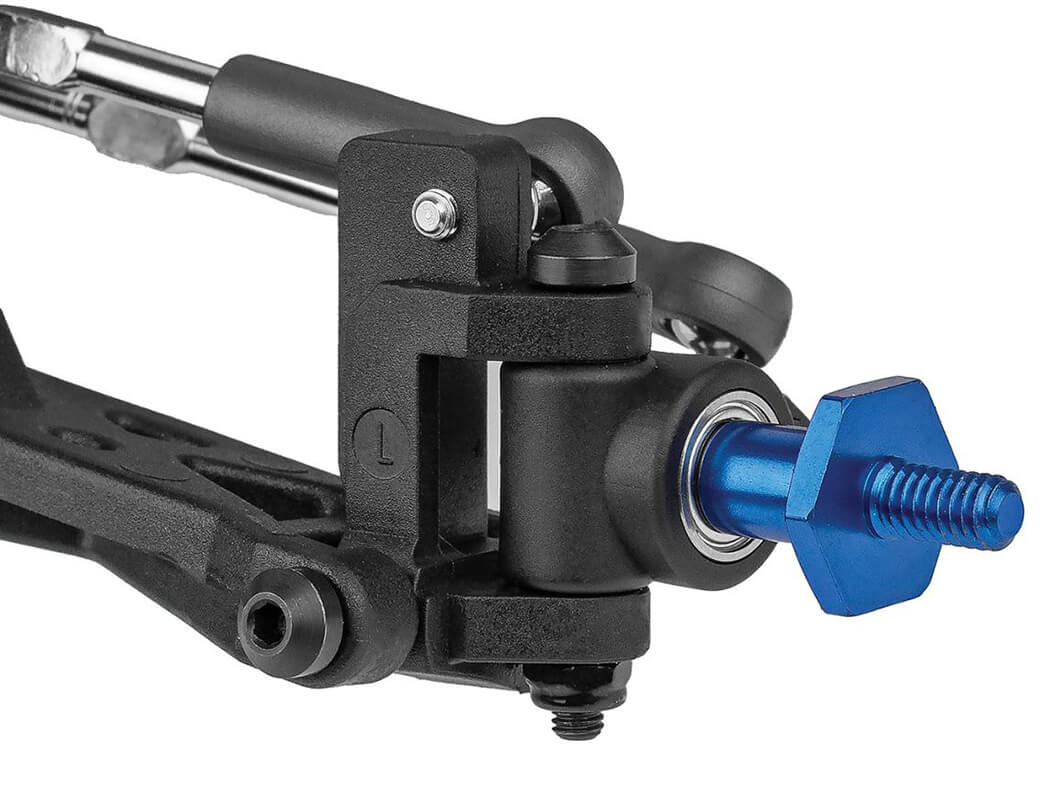

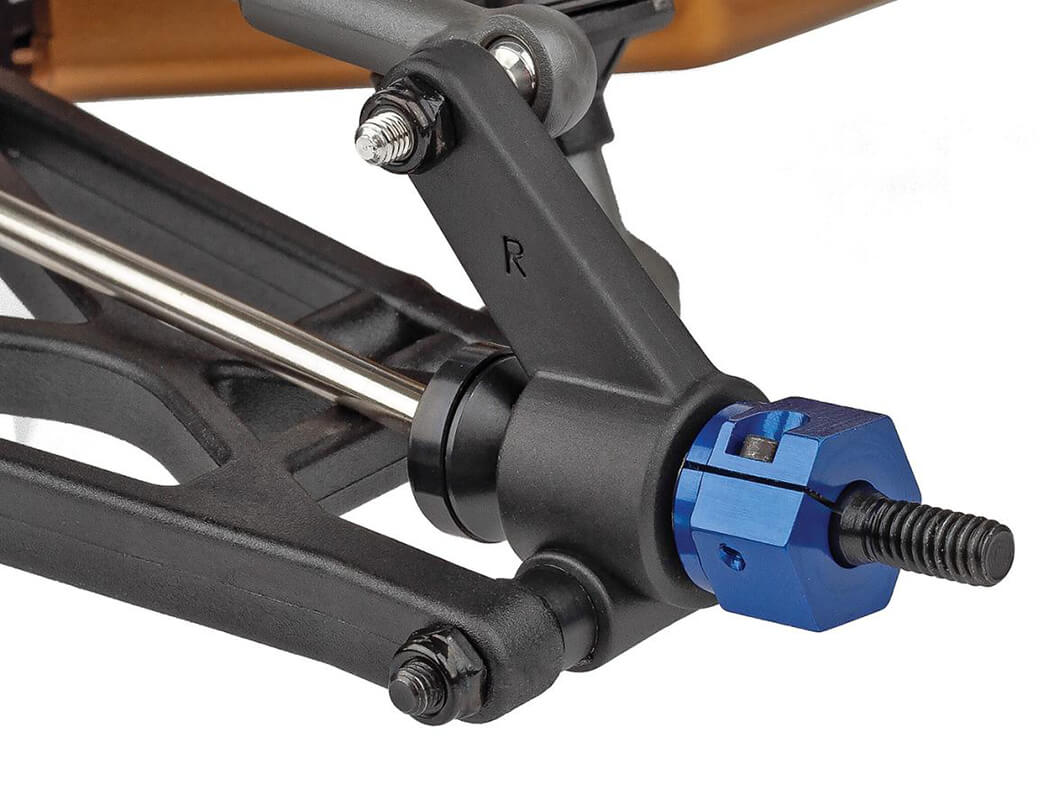

• New Factory Team 12mm hex front steering block.
• New Factory Team 12mm hex front axle and rear CVA’s.
• 12mm Hex T7 wheels included.

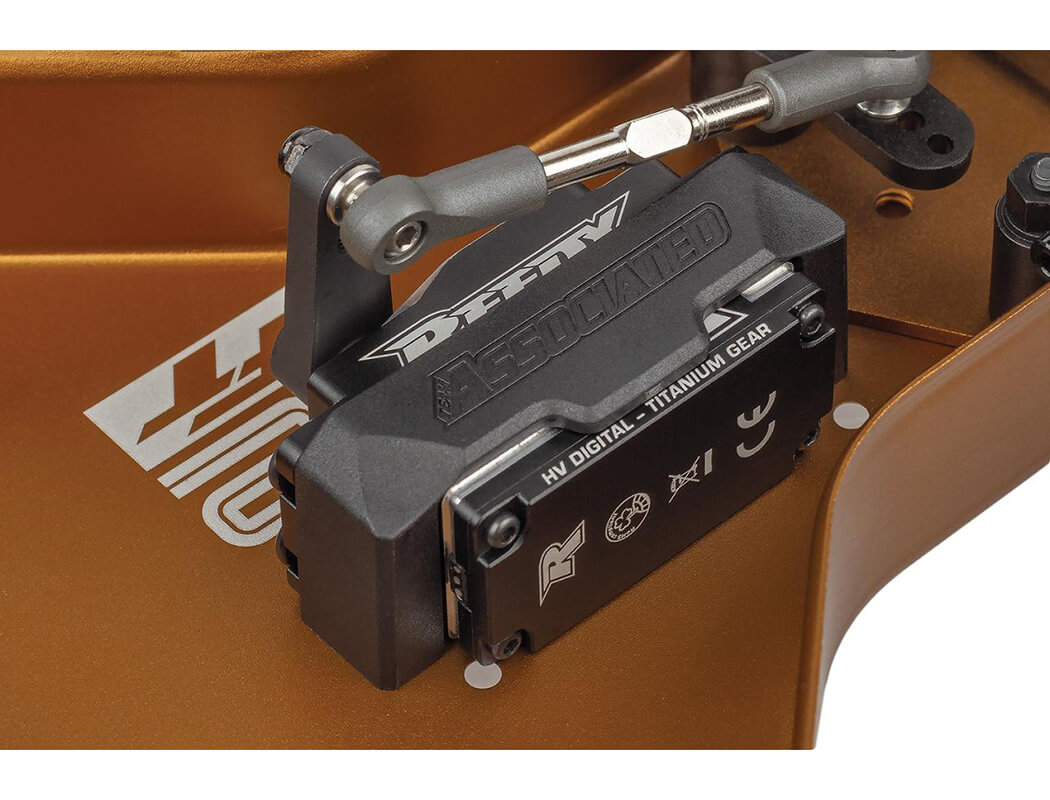

• B7 Servo mount included.
• Heavy Duty Metric Ball Studs.

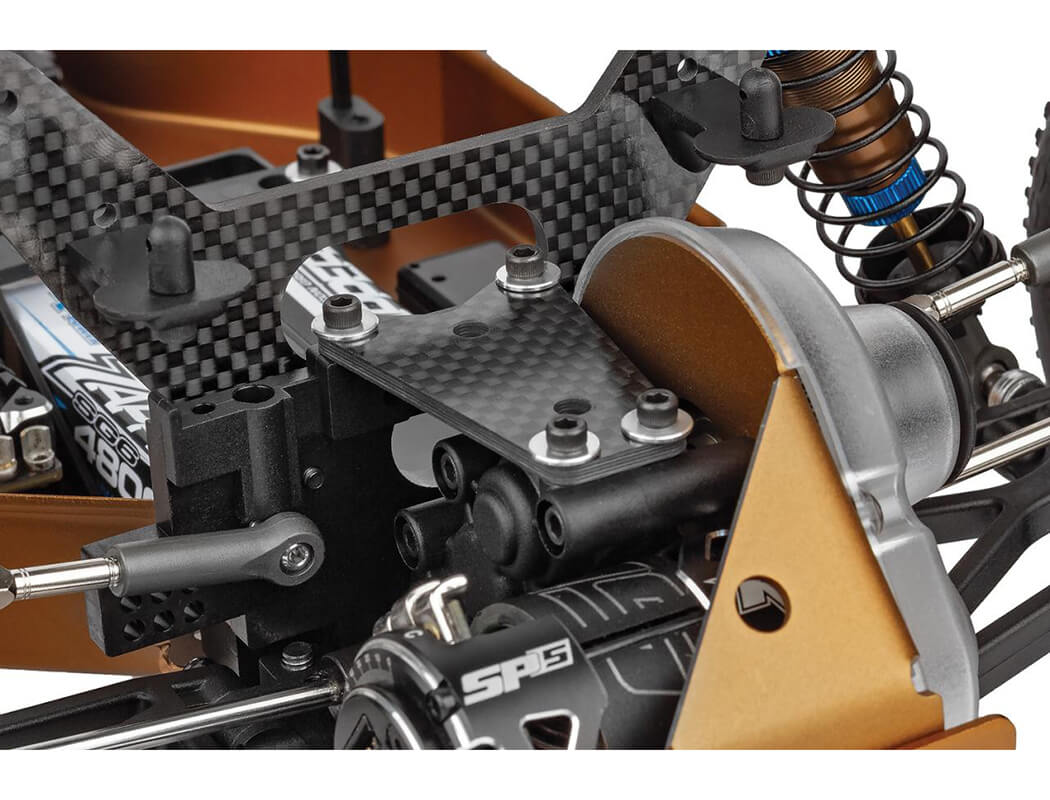

• Carbon fiber transmission brace.

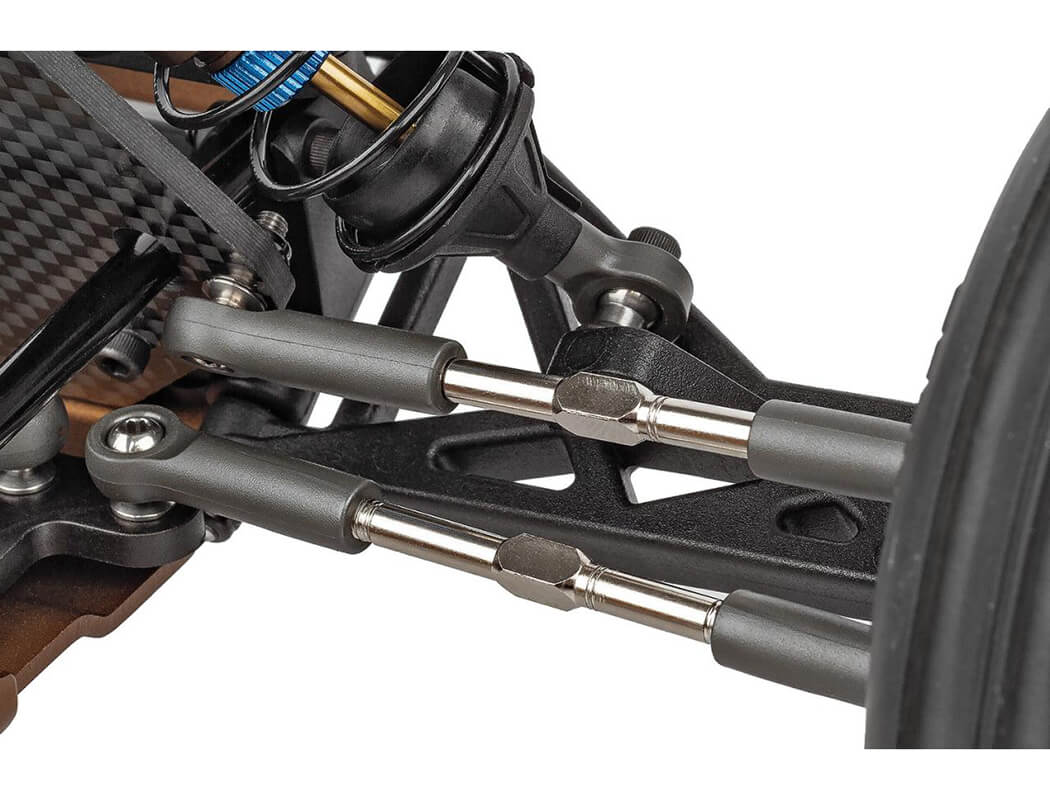

• Heavy Duty Ball Cups and 3.5mm adjustable turnbuckles.
• New Factory Team captured hinge pins all around.

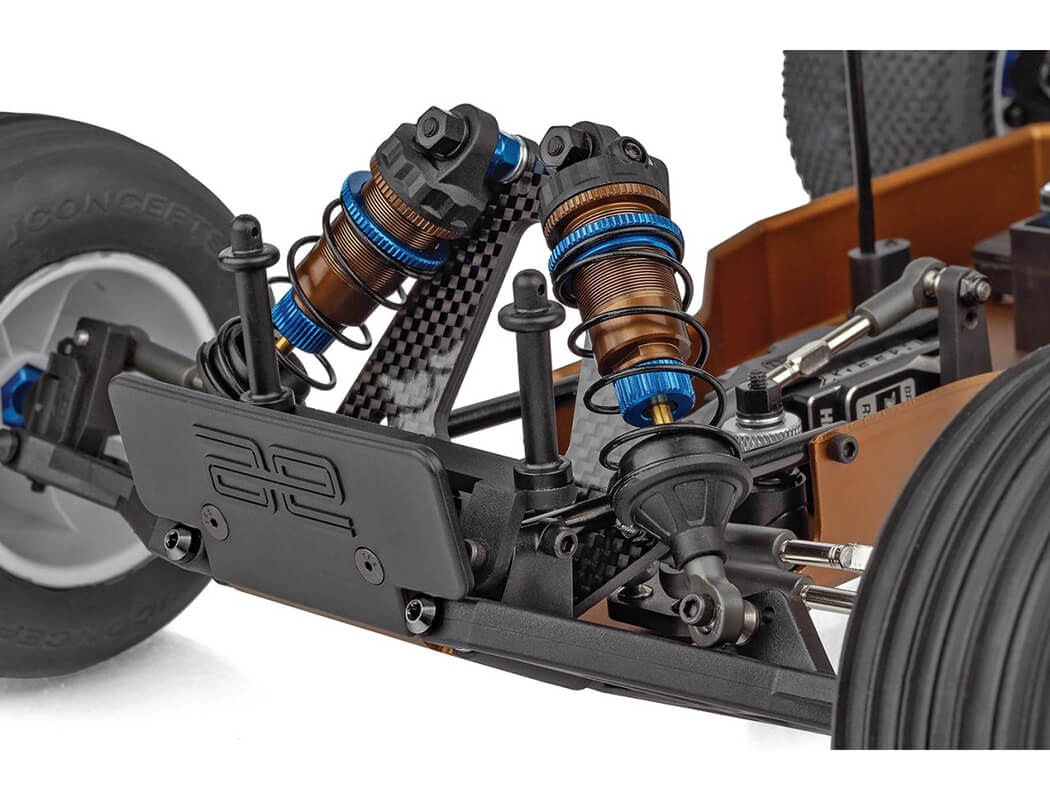

• Kashima coated 13mm big bore factory team shocks included.
• All Black plastics.
• Full ball bearings included.

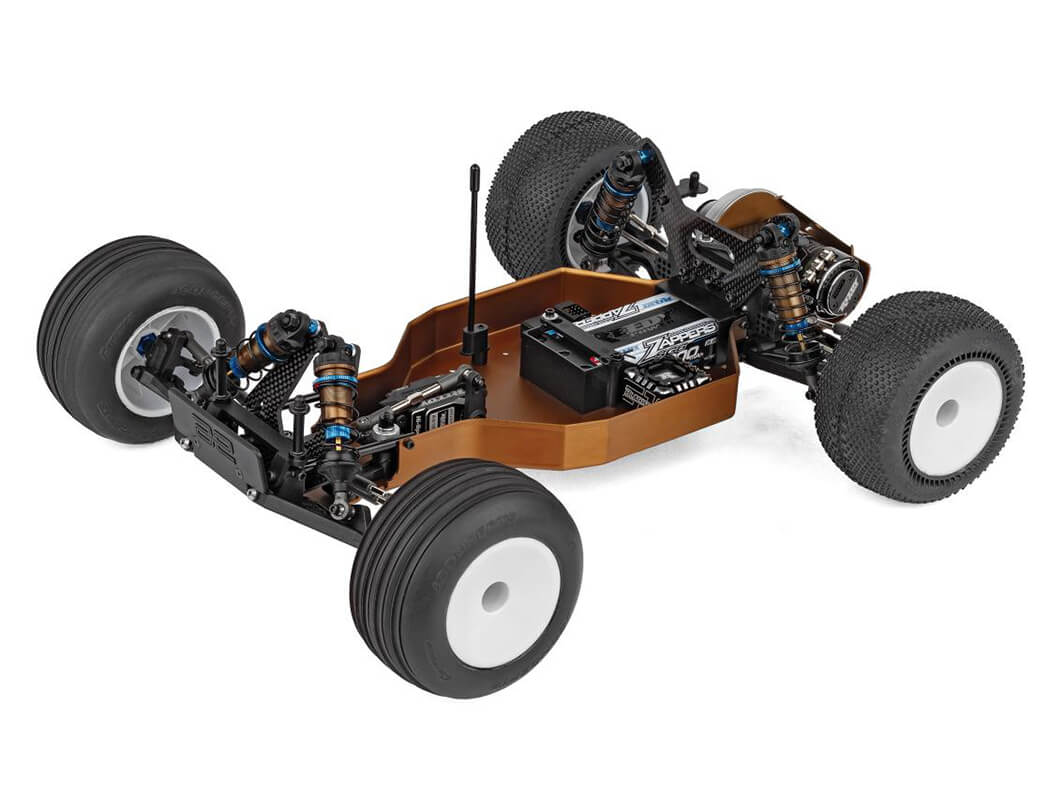

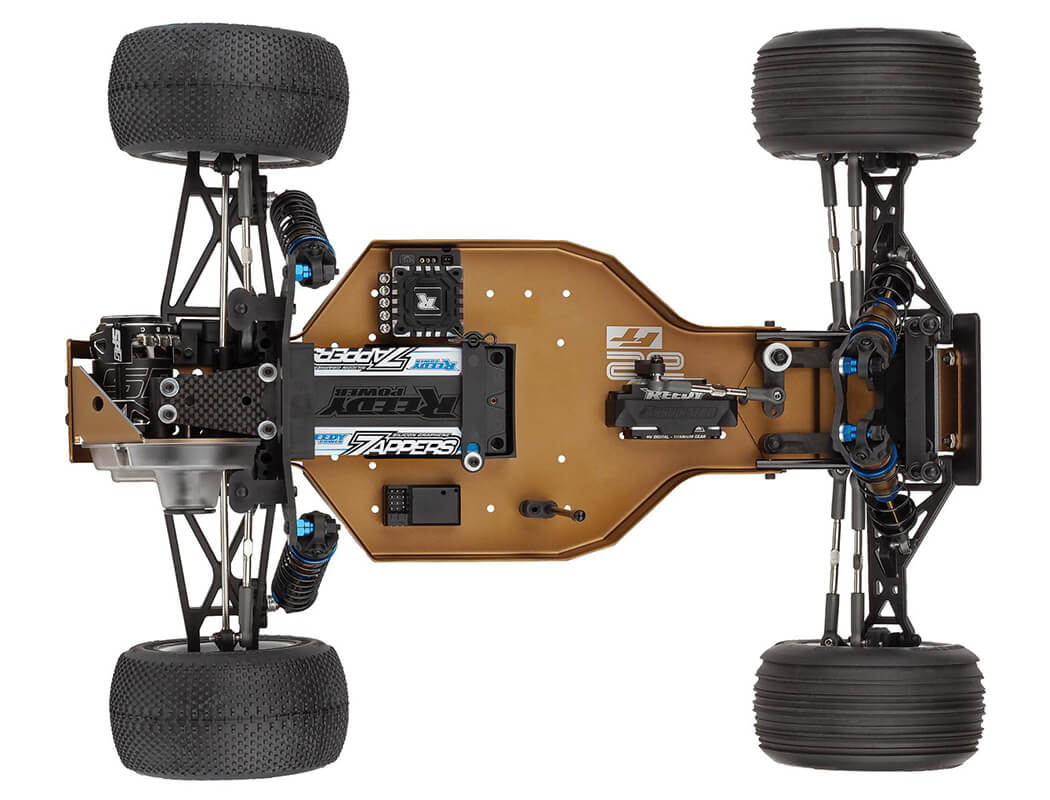

• Bronze color anodized chassis, noseplate and motorplate.
• New Factory Team RC10T logo decal sheet.

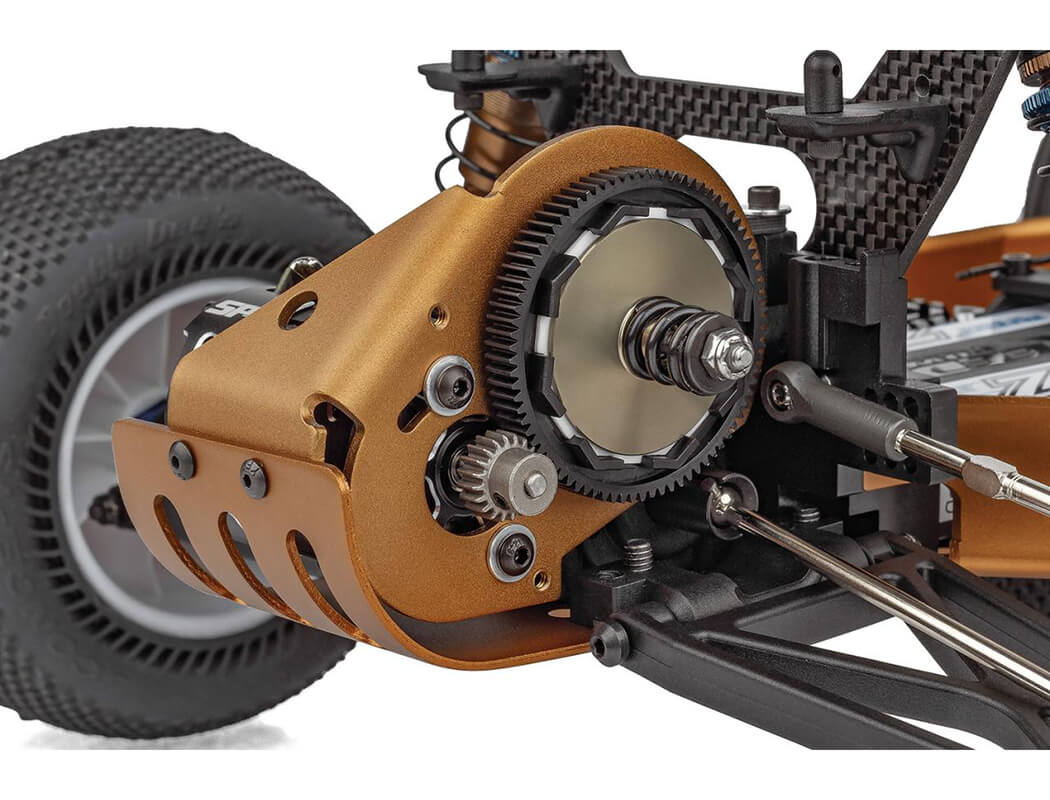

• V2 slipper system included.
• RC10 T2 suspension arms included.

SPECIFICATIONS

Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 396.7mm (15.62in)
Width: 317.5mm (12.5in)
Wheelbase: 284.5mm (11.2in)
Weight: Varies
Internal Gear Ratio: 2.25:1
Drive: 2WD

Please Note: *This vehicle comes as a kit and must be fully assembled by the user.

REQUIRED TO COMPLETE

• Motor
• Battery
• Charger
• Servo
• ESC
• Radio

RECOMMENDED ELECTRONICS

• Servo: AS27172 (Reedy RT2007HD Low-Profile Brushless Hi-Torque Servo).
• Battery: AS27612 (STOCKSTAR 5800mAh 7.4V 160C Shorty).
• ESC: AS27016 (Blackbox 610R Competition ESC).

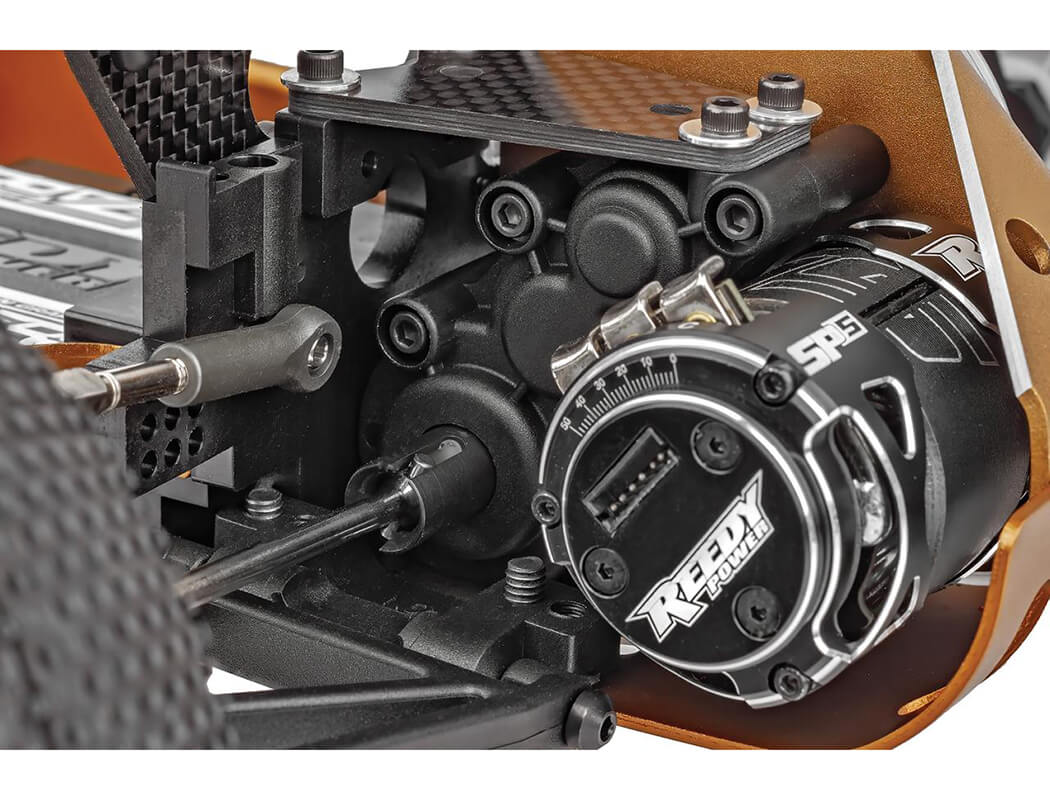

• Motor: AS27481 (Sonic 540-SP5 13.5T Brushless Motor).
• Charger: AS27203 (Reedy 1416-C2L Dual AC/DC Competition Balance Charger).
